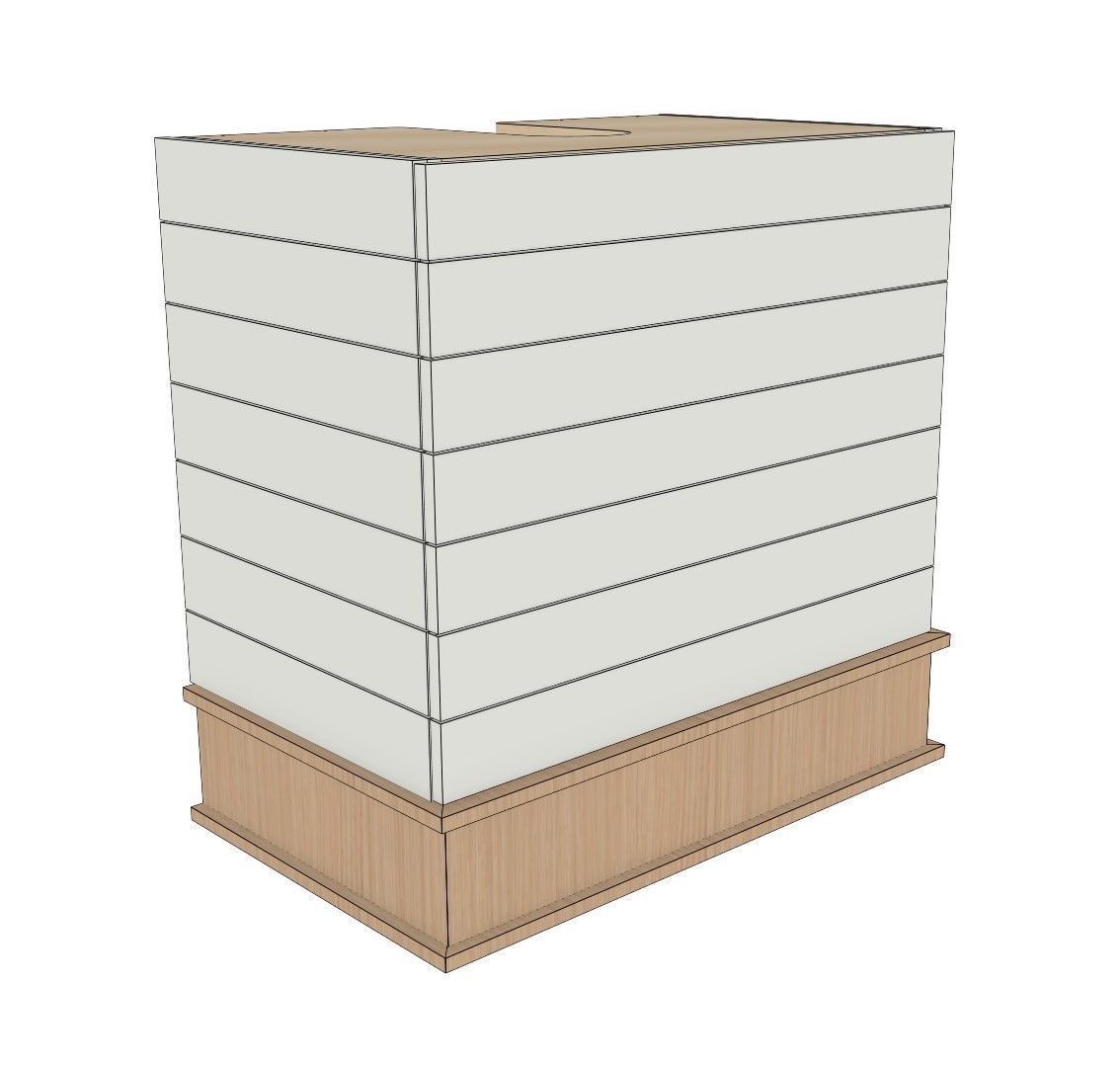

Tired of showing your customers a Sketchup model or an incomplete range hood? This file allows you to show your clients exactly the ballast hood you are providing them!
This file includes all the necessary user parameters for the following:
1. Hood Shape
2. Add trim?
3. Add Strapping?
4. Cutout Size for Blower
5. Cutout Size for Vent Pipe
6. Ship Lap Grooves (number of slats, groove width, mitered or hinged front)
It's designed to be assembled and installed as 1-piece assembly with a hinged front or a detachable fastener such as Hafele Keku Clips or Lamello Tenso mitered front.
REQUIRED TOOLING:
3/8 Compression (Cutout Tool)
90 Degree V-Bit
5mm Drill or 3mm Drill (User Parameter)
All tooling related to MDF door inner tool group (1/8 or 1/4 downshear for shiplap grooves)
