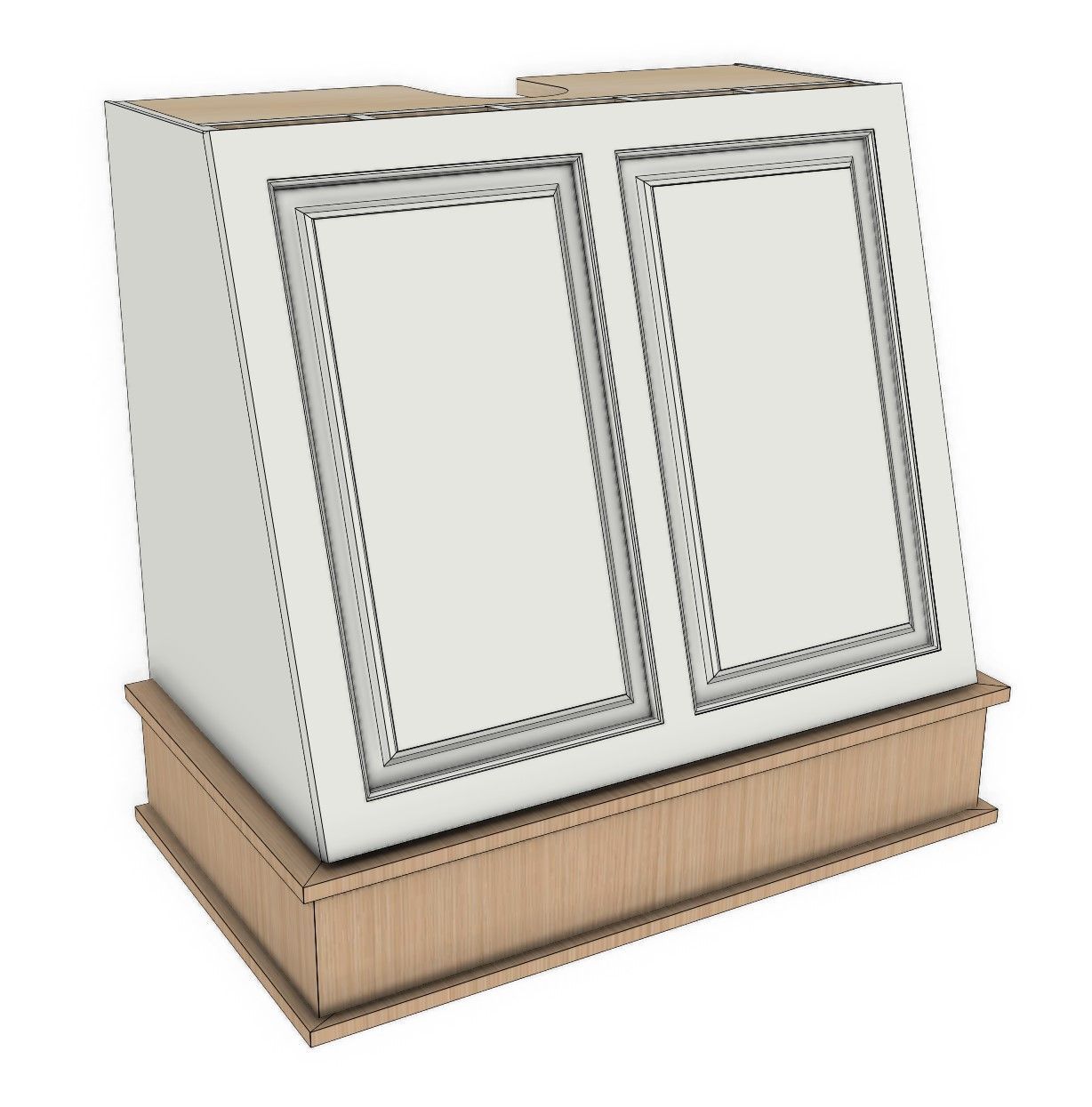

Tired of showing your customers a Sketchup model or an incomplete range hood? This file allows you to show your clients exactly the ballast hood you are providing them!
Hinge the front MDF panel to give fully access to the ducting and blower. Required in most municipalities for code.
The front MDF panel can be assigned edge tool groups to reflect the door style in your job!
This file includes all the necessary user parameters for the following:
1. Hood Shape
2. Add trim?
3. Add Strapping?
4. Cutout Size for Blower
5. Cutout Size for Vent Pipe
It's designed to be assembled as 2-pieces so that one part can be mounted to the wall, a blower wired and attached to the ducting and then the front facia installed into place.
