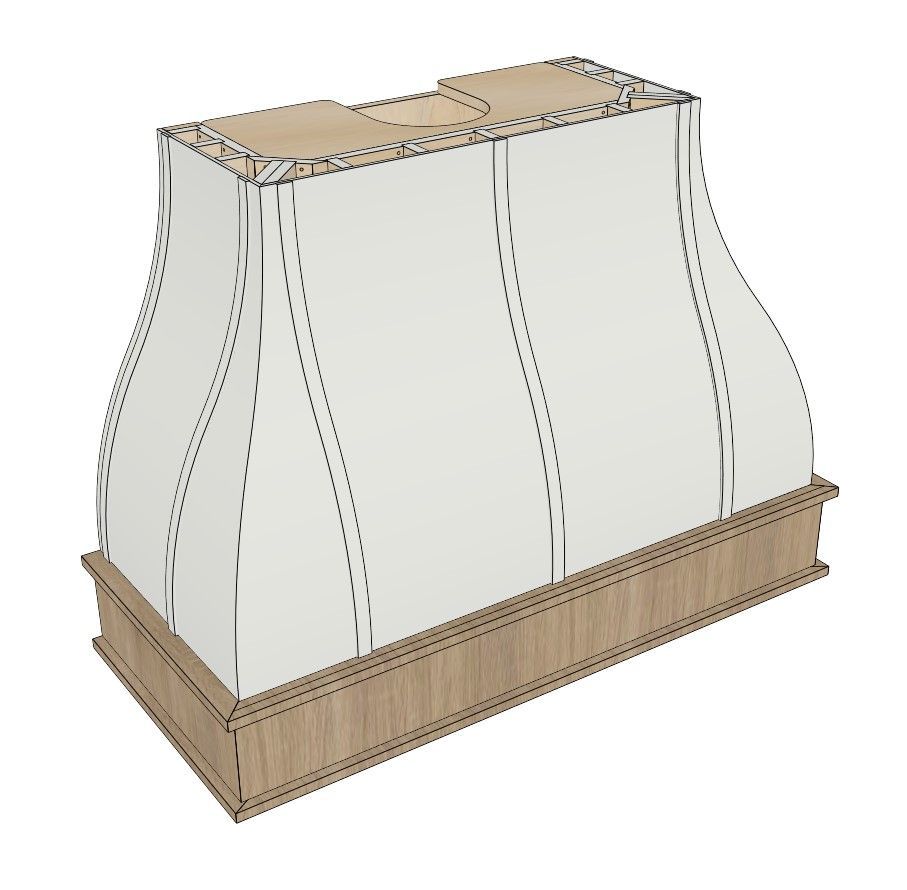

Tired of showing your customers a Sketchup model or an incomplete range hood? Did you sell a hood and now you have to dedicate several days worth of shop time to build the hood from scratch? This file allows you to show your clients exactly what their hood will look like while also cutting all the necessary components for the job!
Engineered to be installed in two separate assemblies, a mount for the blower and the outer frame/skin. The primary advantage of installing the hood in 2-pieces is that the installer can mount the blower on the while being unobstructed by the hood's finished components, this allows for ease of wiring and proper hook-up of the rigid ducting to the blower.
All cut skins are parametric in that they will cut the overall size, correct taper and kerf needed, some trimming and modification will still be required because of the varying angles and bends.
Digital Files Included:
Mozaik Hood File (.MOZ), PDF Installation Guide
Expert Setup (Optional):
If purchased, we will send an availability link to schedule a Zoom meeting to install and briefly train on how to use the file(s). (roughly 15 minutes)
Assembly:
Installation:
Parameters Included:
Hood Shape (Width, Height, Depth, Taper/Inset)
Trim Options (Trim apron, Trim above and below, option for curve on front)
Strapping Options (Hood Faces or Apron Trim; QTY: 0, 2, 3 or 5)
Cutout for Blower Insert (Width, Length & Setback)
Cutout for Vent Pipe (Move left and Right off center)
Construction parameters for pilot holes and kerf depths
